| Features |

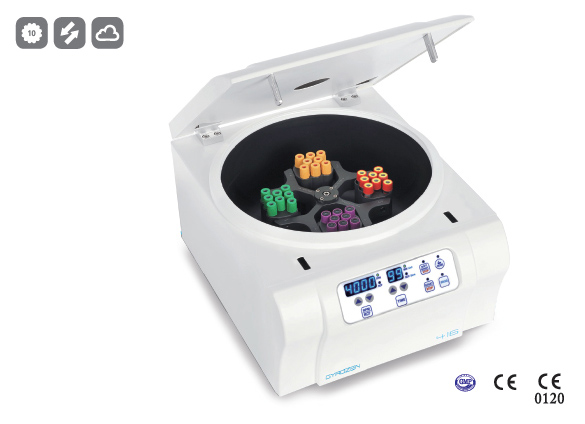

| The 416, compact bench top centrifuge with maximized capacity of 400 ml |
| Commonly used in the fractionation of blood samples and simple precipitation of biological samples |
| A spearate button for "Soft" start/stop function to achieve very gentle acceleration and deceleration |
| Furnished with unique air flow design and anti-vibration structure to minimize heat and noise generation |
| Lid drop protection design allows easiness and safety when loading or unloading samples. |
| Automatic lid release and vivid end alarm for easy retrieval of sample |
| A large assortment of rotors, buckets and adaptors for microtubes and all sizes of tubes up to 100 ml |
| CE MDD-certified version also available (inquire) |
|
|
| Applications |
General laboratory applications, including biological sample separations of cellular materials, blood, urine, sperm etc.
Clinical applications of PRP, PRF, lipid cell separation, stemcell isolation
Low-speed, gentle centrifugation of microbead containing microplate
Gentle, soft spin-down or washing of primary cells & cell line. |
|
| Technical Specifications |
| Max. RPM / Fixed angle |
4,000 rpm |
| Max. RPM / Swing-out |
4,000 rpm |
| Max. RCF / Fixed angle |
2,700 x g |
| Max. RCF / Swing-out |
2,826 x g |
| Max. capacity / Fixed angle |
16 x 15 ml |
| Max. capacity / Swing-out |
4 x 100 ml, 32 vacutainer tube, 2 MTPs |
| Time control |
Timed < 100 min or continuous |
| RPM/RCF conversion |
Yes |
| Noise level (dB) |
≤ 52 |
| Acc. time to max. speed |
≤20 sec |
| Dec. time from max. speed |
≤25 sec |
| SOFT start/stop |
Yes |
| Program memory |
10 |
| Parameters on display window |
RPM(RCF), Min(Sec) |
| Imbalance cutout |
Yes |
| Safety lid lock |
Yes |
| Lid drop protection |
Yes |
| Automatic door release at completion |
Yes |
| Power supply (V/Hz) |
220/50~60 (110V optional) |
| Power requirement (VA) |
340 |
| Dimension (W x D x H, mm) |
375 x 480 x 260 |
| Weight without rotor (Kg) |
19.5 |
| CE mark |
Yes |
| Cat. No. |
GZ-416 |
|
|
